Hey there! As a supplier of modular drills, I often get asked this question: "Can a modular drill be used for deep - hole drilling?" Well, let's dig into this topic and find out.
First off, let's understand what a modular drill is. A modular drill is a versatile cutting tool that consists of different components. It usually has a shank, a body, and inserts. The great thing about modular drills is their flexibility. You can easily change the inserts when they wear out, which saves both time and money. For example, if you're using the Insert Of High Speed Modular Drill, you can quickly swap it out with a new one instead of replacing the whole drill.
Now, when it comes to deep - hole drilling, there are some unique challenges. Deep - hole drilling typically refers to drilling holes where the depth is significantly greater than the diameter, say, a hole with a depth - to - diameter ratio of 5:1 or more. The main issues in deep - hole drilling include heat generation, chip evacuation, and maintaining straightness.

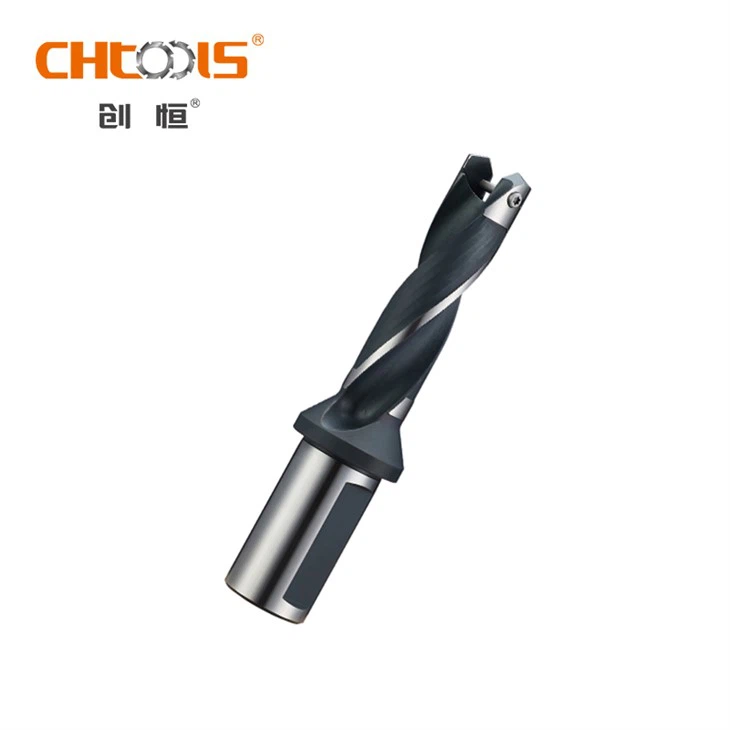

Let's talk about heat first. When you're drilling deep holes, a lot of heat is generated due to the friction between the drill and the workpiece. Excessive heat can not only damage the drill but also affect the quality of the hole. Modular drills, especially those with Carbide Insert Of High Speed Modular Drill, are designed to handle high - temperature situations. Carbide is a hard and heat - resistant material, which allows the drill to withstand the intense heat generated during deep - hole drilling.
Chip evacuation is another critical factor. In deep - hole drilling, chips can easily get trapped in the hole, causing the drill to jam and potentially break. Modular drills often have special flute designs that are optimized for chip evacuation. These flutes are shaped in a way that helps the chips flow out of the hole smoothly. Some modular drills also come with coolant channels. By directing coolant through these channels, you can further assist in chip removal and also reduce heat.
Maintaining the straightness of the hole is also crucial in deep - hole drilling. A modular drill can be adjusted and optimized to ensure straight drilling. You can select the appropriate inserts and drill body based on the requirements of your specific application. For instance, if you need to drill a very straight hole in a hard material, you can choose a high - precision High Efficiency Modular Drill with the right inserts.
However, it's not all smooth sailing. There are some limitations to using modular drills for deep - hole drilling. One of the main limitations is the length of the drill. As the length of the drill increases, it becomes more prone to deflection. This can lead to inaccurate hole diameters and poor surface finish. To overcome this, you need to carefully select the drill and use proper support techniques. For example, you can use guide bushings to help keep the drill in line.
Another limitation is the cost. Modular drills can be more expensive upfront compared to traditional drills. But when you consider the long - term benefits, such as the ability to replace inserts instead of the whole drill, the cost can be justified.
In some applications, the choice between a modular drill and a dedicated deep - hole drill depends on the volume of work. If you're doing a high - volume production of deep holes, a dedicated deep - hole drill might be more suitable. But for smaller - scale projects or when you need flexibility, a modular drill can be a great option.
Let's look at some real - world examples. In the automotive industry, deep - hole drilling is often required for engine components. A modular drill can be used to drill holes in cylinder heads or crankshafts. The ability to change inserts quickly allows for continuous production without long downtime for tool replacement. In the aerospace industry, where precision is of utmost importance, modular drills can be used to drill holes in high - strength materials. The adjustable nature of modular drills helps in achieving the required accuracy.
So, can a modular drill be used for deep - hole drilling? The answer is yes, but with some considerations. If you're facing the challenges of heat, chip evacuation, and straightness, a well - chosen modular drill can be an effective solution.
If you're interested in exploring our range of modular drills for your deep - hole drilling needs, don't hesitate to reach out. We're here to help you find the best tool for your specific application. Whether you're a small - scale workshop or a large - scale manufacturing plant, we have the right modular drill for you. Let's start a conversation about how we can improve your drilling processes and boost your productivity.
