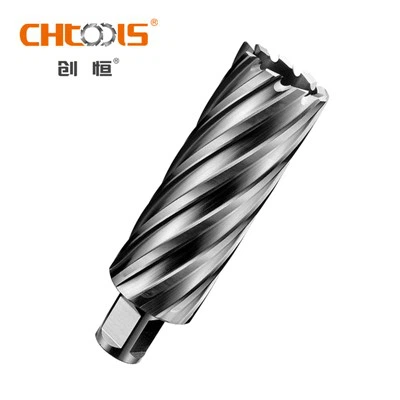

Magnetic Drill Cutter
Diameter：12-50mm
Cutting depth：50mm
Matching arbor：DJLY-50K-MT2
- Magnetic Drill Cutter, suitable for various magnetic drilling machine;
- Thread shank, suitable on Fein magnetic drills;
- HSS-E with multi-cut geometry for ply-cutting and lower friction to reach better performance of endurance and removal of chips;
- Applicable to hole drilling and process of annular flute on various magnetic drills and press;
- Choose TiAIN, TiN and AlCrN coatings to improve performance.
|
Model |
DNHL |
|
Shank type |
Thread shank |
|
Shank diameter |
M18x6(P1.5) |
|
Brand |
CHTOOLS |
|
Applicable material |
Various steel material, steel plate, stainless steel, aluminum, brass, cast iron, etc. |
|
Specification |
MT2*50*M18x6(P1.5) |
Application
Our HSS mag drill bits can be widely used in steel structures, bridge construction, shipbuilding, drilling platforms, railway construction, and mechanical manufacturing for cutting various materials such as structural steel, alloy steel, stainless steel, aluminum, brass, cast iron, and more.
Magnetic Drill Cutter 's FAQ
Q: 1. Are annular cutters universal?
+
-
A: Shanks of annular cutters can be different. The most commonly used shanks are Weldon shanks and Universal shanks.
Q: 2. Which is better, TCT or HSS annular cutter?
+
-
A: Although seemingly costlier than the HSS cutter initially, TCT cutters are more robust and can cut multiple times more holes, operate at higher speeds.
Q: 3. Can I get a sample?
+
-
A: Yes. We can supply sample, and free sample for some small value products.
Q: 4. What is the difference between a hole saw and an annular cutter?
+
-
A: Unlike hole saws, annular cutters are not fully cylindrical; they feature a hollow design with a series of cutting teeth that only extend around the perimeter, leaving a solid center.
Q: 5. Do annular cutters need a pilot hole?
+
-
A: The annular cutter is designed for drilling holes in steel, copper, brass, aluminum, stainless steel, special alloys and rails. For precise drilling, position the pilot pin on your material "in the center" of the hole you want to drill, and turn on the magnet.
Hot Tags: magnetic drill cutter, China magnetic drill cutter manufacturers, suppliers, factory, 1 Annular Cutter, 20mm Mag Drill Bit, 3 Inch Annular Cutter, Annular Bit, HSS Solid Annular Cutter With X Type Weldon Shank, Slugger Bit For Mag Drill
